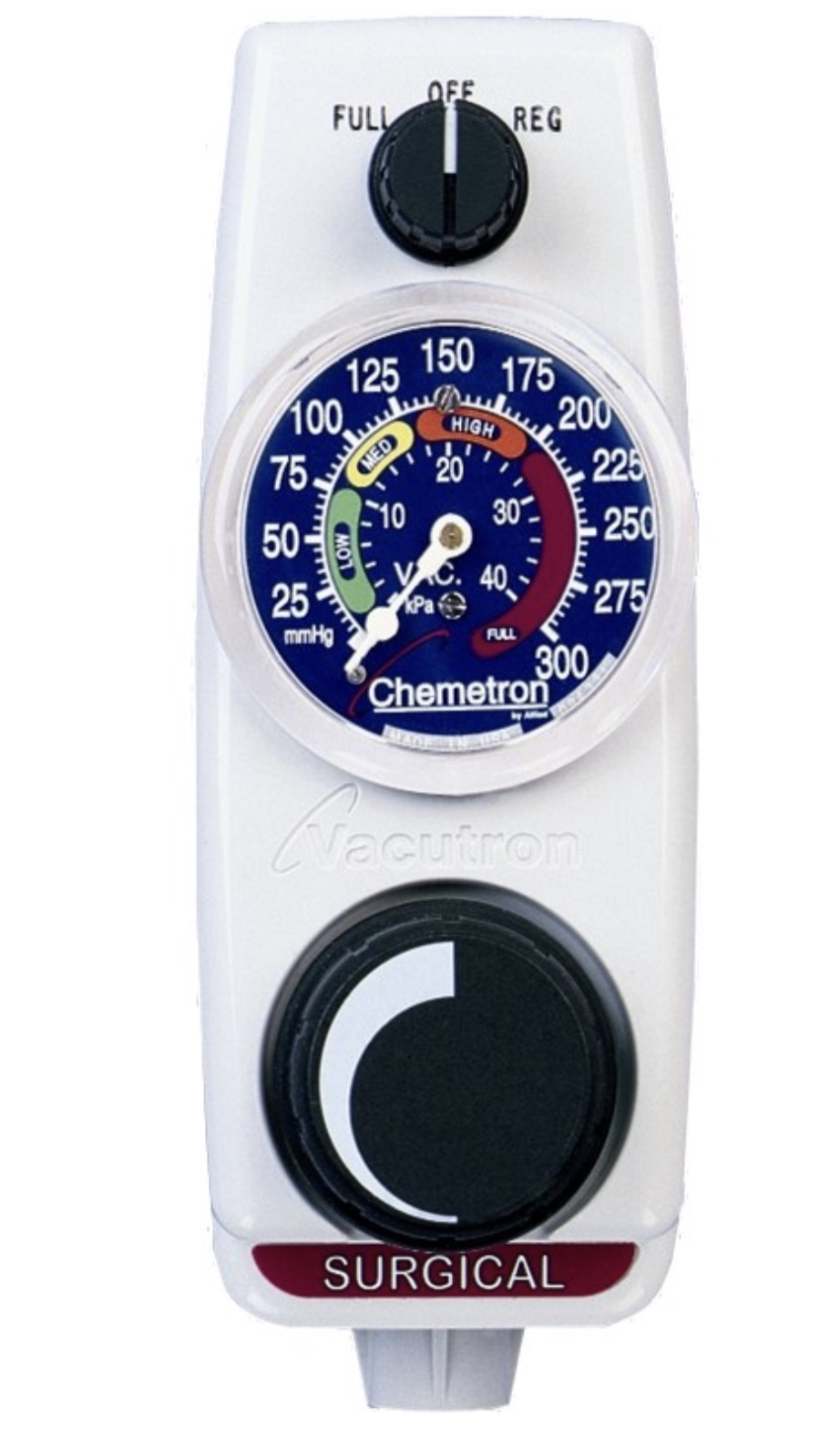

Allied Healthcare Continuous Suction Regulator with DISS Male Outlet, Ohmeda Inlet, 3 Mode

***LIMITED QUANTITIES***

Allied Healthcare Part # 22-12-1106

Allied Healthcare Continuous Suction Regulator with DISS Male Outlet, Ohmeda Inlet, 3 Mode

The surgical suction regulator is designed for use in surgical suites. There are two operational modes: regulated vacuum and full line. Regulated suction allows the clinician to set the vacuum level between 0 and 300 mm Hg. On full line mode, the vacuum pressure delivered is unregulated and equal to the vacuum line pressure.

Key Features

Internal safety relief valve limits the maximum vacuum level on regulated mode to 320 mm Hg in the event of regulator failure or inaccuracy
Superior regulation mechanism ensures stable vacuum settings even with fluctuations in source vacuum

Specifications:

Operating Modes: OFF, Regulated and Full Line

Regulated Vacuum Range: 0-300 mm Hg

Safety Relief Valves: 1 @ 320 mm Hg

Vacuum Gauge Scale: 0-300 mm Hg in 5 mm Hg increments

0-40 kPa in 2 kPa increments

Dimensions: 6.8″ H x 2.65″ W x 4.07″ D (174 mm x 67 mm x 104 mm)

Weight: 1.3 lbs. (0.59 kg)
